Detail

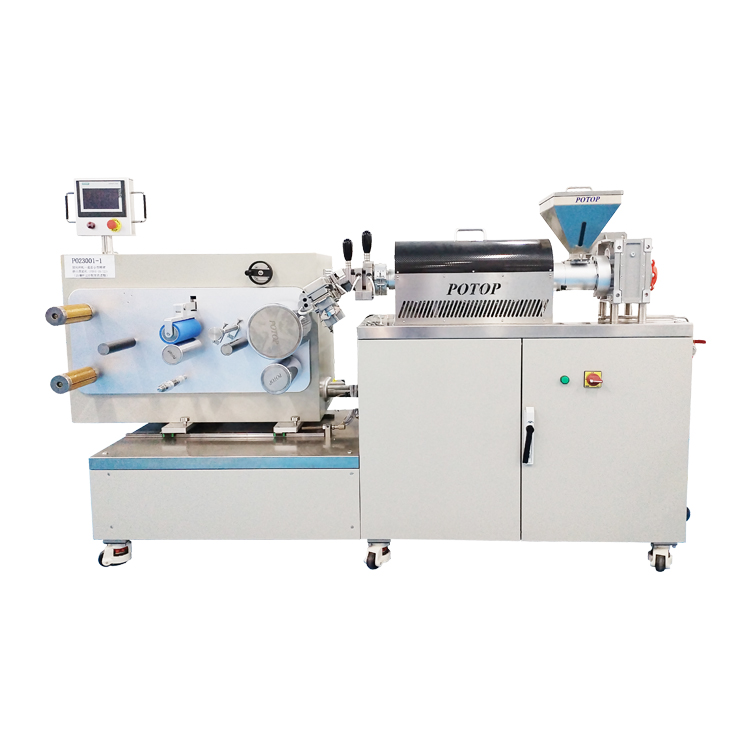

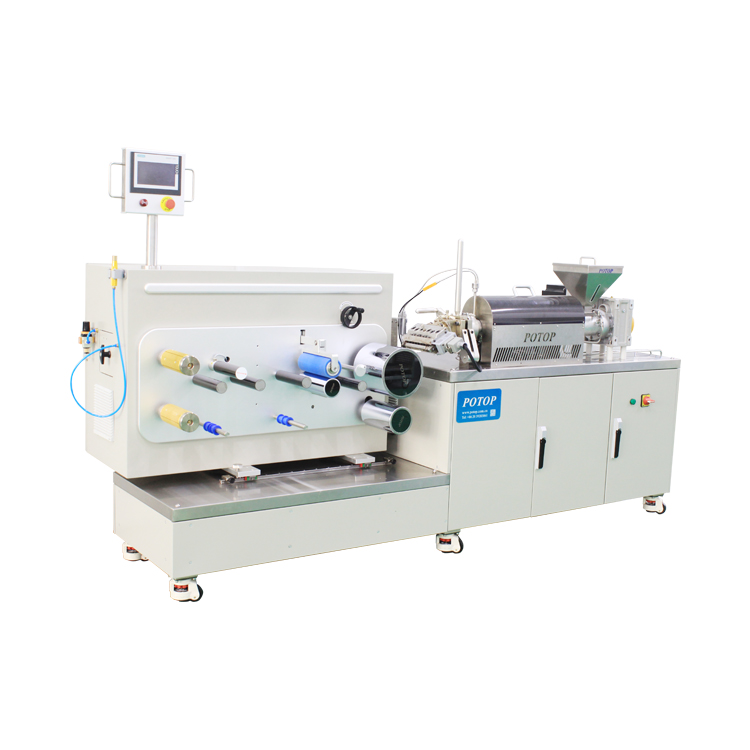

The purpose of Desktop Casting Machine is to make samples of cast film, adjust material formula, process research, parameter optimization, etc. based on the film forming effect. Suitable for the casting of commonly used polymer materials such as PE, PP, TPU, PVDF, PC, and providing laboratory solutions for functional films such as optical films, photovoltaic films, lithium battery separators, water treatment permeation films, and high barrier packaging films.

Case of plastic cast film.jpg


Case of plastic cast film




APPLICATION

● Casting experiment of polymer materials.

● Research and parameter optimization of casting production process.
● New material casting performance test

● Masterbatch dispersion performance test and evaluation



FEATURES
1.Hopper assembly: stainless steel rotating structure, disassembled by hand

2. The desktop integrated design is practical, beautiful, and occupies a small space

3. The host is driven by a servo motor, with precise speed and stable plasticization

4. The material barrel is made of 38CrMoAlA material, and the feeding port of the screw barrel is cooled by circulating water to prevent the material from sticking and causing accumulation due to high temperature.

5. Using ceramic electric heaters for heating, beautiful and durable

6. Screen changer: single station, convenient plug-in type, made of 304 stainless steel material

7. Disassembly and assembly method: The patented design of the 90 degree suspension mold does not require disassembly of the mold, and the screw can be directly removed for cleaning, with a user-friendly design and convenient operation

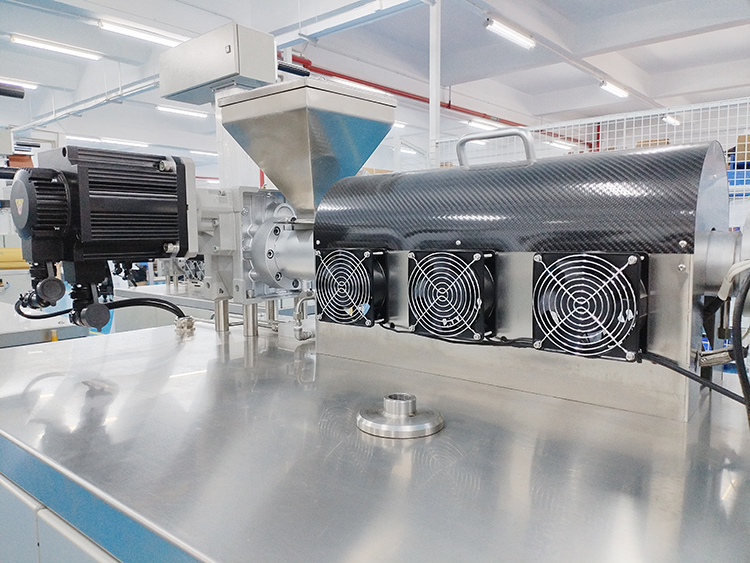

8. Safety protection device: equipped with a dedicated fan, using an integrated anti scalding carbon fiber protective cover

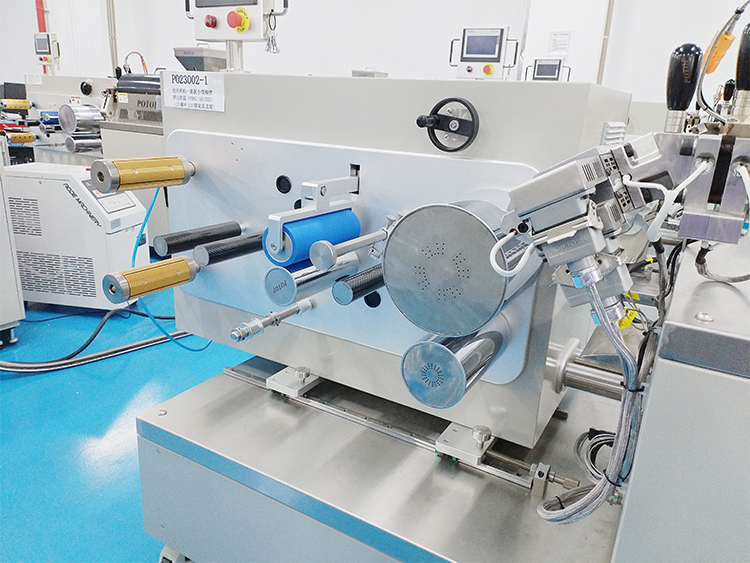

9. Uniform film-forming temperature control: The internal design of the roller has a water flow channel, which is convenient for different process requirements to choose and configure a chiller/mold temperature machine for roller temperature control

10. Intelligent control imported control system touch screen intelligent control, the screen directly generates process process parameters. Can collect data such as speed, torque, temperature, pressure, etc




PERFORMANCE SPECIFICATION
ModelFDSI-20/28FDSI-25/28
Applicable materialsPE、PP etc.
Screw diameter20mm25mm
L/D28
Screw speed0-120rpm
Die width120mm
Product width0-80mm
Product thickness0.02-0.1mm
Roller width220mm
Line speed0-5m/min
Pressure measurement range/accuracy0-50MPa,0.5%F.S
Heating/cooling methodElectric heating/Fan cooling
Operating temperatureRoom temperature-350°C
Temperature control accuracy±1℃
Max. output3kg/h
Main motor power3kW3.5kW
ControlSIEMENS PLC
Working voltageThree-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz
Rated powerApprox10kW
L x W x H2105mm×860mm×1585mm
WeightApprox 600kg


Equipped with thin film visual defect detection

Equipped with thin film visual defect detection.jpg
