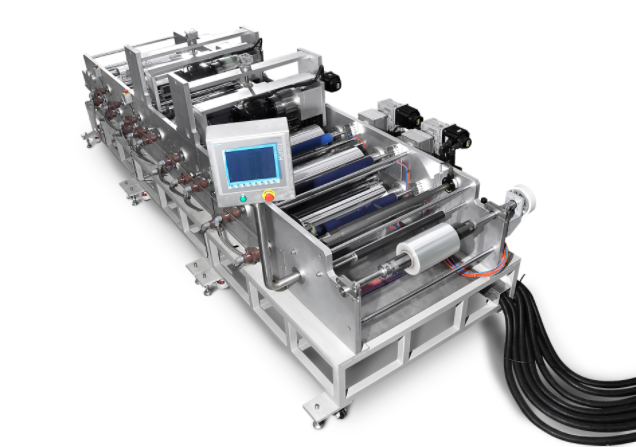

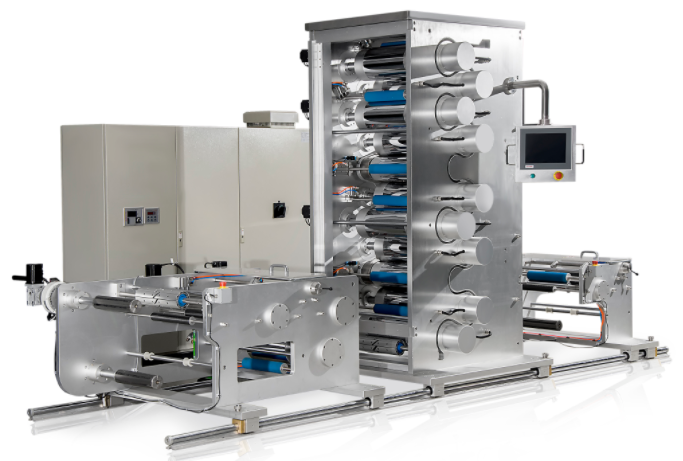

MDO Machine-Vertical/Horizontal type Pro version
APPLICATION
Laboratory preparation and small-scale production of longitudinal tensile film
Research and optimization of film longitudinal drawing process
Film tensile property test
Research and development of new film material formula
Combined with extrusion tape casting experimental line to realize on-line longitudinal stretching
SPECIFICATION
Model | FOHU-26 | FOHU-35 |
Roller width | 260mm | 350mm |
Pre-heat roller | 1pcs | 1pcs |
Stretching roll distance | 0-50mm | 0-50mm |
Forming roller | 2pcs | 2pcs |
Cooling roller | 1pcs | 1pcs |
Maximum linear velocity at film outlet | 40m/min | 40m/min |
Roller heating mode | Heating medium oil | Heating medium oil |
Temperature control accuracy | ±1℃ | ±1℃ |
Control | SIEMENS PLC | SIEMENS PLC |
Working voltage | Three-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz | Three-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz |
Rated power | Approx. 42kW | Approx. 42kW |
L x W x H | 2350×2140×2020mm | 2350×2140×2020mm |
Weight | Approx. 1000kg | Approx. 1000kg |
Note: The parameters are subject to change without prior notice.
